Outdoor Lighting - Aluminum Street Light Series

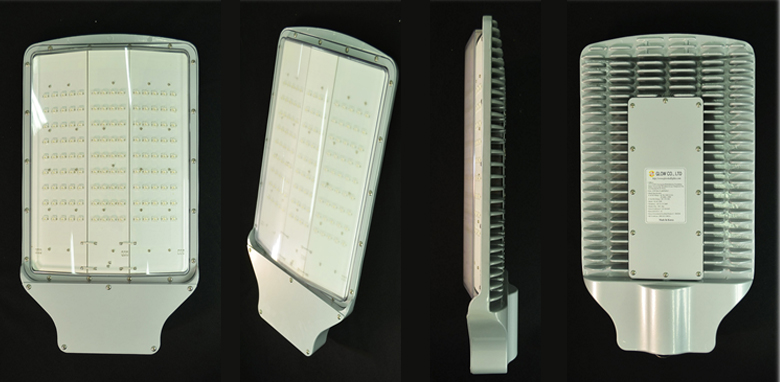

Street Light: Al Series SLC-L-120

Products Features

◆ Generic material “Aluminum alloyed” applied

◆ Luminous distribution priority designed.

◆ Able to adopt downtown motorway or High-speed motor way

Technical Specifications

ITEM	Specification	Symbol
Model Name	SLC-L-120	---
Dimension	350 (Width) x 580 (Length) x 120 (Thickness)	mm
Input Voltage	220	Vac
Power Consumption	120	W
Working Current	0.55	A
Power Factor	Over 97	%
Color Temperature	6,000 ± 500	K
CRI	Over 70	Ra
Total luminous flux	9,600	lm
Measured Luminous Efficacy	90	lm/W
Beam Angle	Horizontal :120˚ ,  Vertical : 70˚	deg
Operating Temperature	-25℃ ~ 65℃	℃
Water Proof	IP-66	-
Weight	9.8	Kg
Life Time	Typical  40,000	Hr

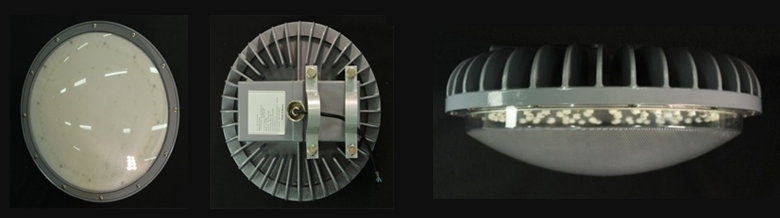

Security Light: SRC-S-060

Products Features

Technical Specifications

ITEM	Specification	Symbol
Model Name	SLC-L-120	---
Dimension	350 (Width) x 580 (Length) x 120 (Thickness)	mm
Input Voltage	220	Vac
Power Consumption	120	W
Working Current	0.55	A
Power Factor	Over 97	%
Color Temperature	6,000 ± 500	K
CRI	Over 70	Ra
Total luminous flux	9,600	lm
Measured Luminous Efficacy	90	lm/W
Beam Angle	Horizontal :120˚ ,  Vertical : 70˚	deg
Operating Temperature	-25℃ ~ 65℃	℃
Water Proof	IP-66	-
Weight	9.8	Kg
Life Time	Typical  40,000	Hr
