Outdoor Lighting - Magnesium Street Light Series

Street Light: Mg Series – Squared Lamp Type

Products Features

◆ New Material “Magnesium” applied. - Weight Lightening (30% improved by Al material) - Heat flux performance (20% improved by Al material) ◆ Easy to adopt specification for variable purpose ◆ High-speed motorway Street light ◆ Lamp number adjustable - 4, 3, 2 and Single Lamp type - Able to use Park road Light, Security Light purpose.

Technical Specifications

ITEM	Specification		Symbol
Model Name	SLS-S-150	SLS-S-200
Dimension	480 (Width) x 700 (Length) x 80 (Thickness)		mm
Input Voltage	220		Vac
Power Consumption	150	200	W
Working Current	0.68	0.91	A
Power Factor	Over 98		%
Color Temperature	6,000 / 5,500 / 5,000		K
CRI	Over 70		Ra
Total luminous flux	13,600	18,000	lm
Measured Luminous Efficacy	90	90	lm/W
Beam Angle	Horizontal :170˚ ,  Vertical : 65˚		deg
Operating Temperature	-40℃ ~ 40℃		℃
Water Proof	IP-65		-
Weight	7.5	8.2	Kg
Life Time	Typical  50,000		Hr

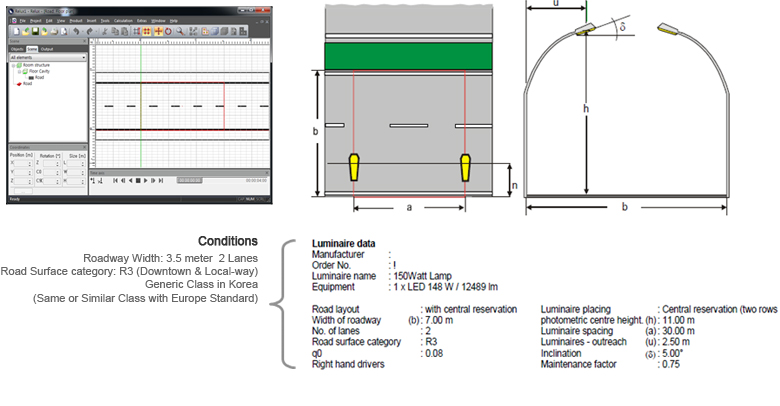

Street Light Simulation with SLS-S-150

Simulation Software: Relux Pro 2012

Street Light: Mg Series – Circular Lamp Type

Products Features

◆ New Material “Magnesium” applied. - Weight Lightening (30% improved by Al material) - Heat flux performance (20% improved by Al material) ◆ Easy to adopt specification for variable purpose ◆ High-speed motorway Street light ◆ Lamp number adjustable - 4, 3, 2 and Single Lamp type - Able to use Park road Light, Security Light purpose.

Technical Specifications

ITEM	Specification		Symbol
Model Name	SLS-S-150	SLS-S-200
Dimension	480 (Width) x 700 (Length) x 80 (Thickness)		mm
Input Voltage	220		Vac
Power Consumption	150	200	W
Working Current	0.68	0.91	A
Power Factor	Over 98		%
Color Temperature	6,000 / 5,500 / 5,000		K
CRI	Over 70		Ra
Total luminous flux	13,600	18,000	lm
Measured Luminous Efficacy	90	90	lm/W
Beam Angle	Horizontal :170˚ ,  Vertical : 65˚		deg
Operating Temperature	-40℃ ~ 40℃		℃
Water Proof	IP-65		-
Weight	7.5	8.2	Kg
Life Time	Typical  50,000		Hr
